Easy Clean Design
Nano Platinum Filter
Outdoor unit only 68.4cm wide
Econo Cool
Computerized Dehumidification
Outdoor unit only 54cm high
Vertical Auto Swing (6 Modes)
I FEEL Control
Energy Efficiency Grade 1 (Cooling)
2 years full machine warranty & 5 years compressor warranty
Pre-set On/Off Timer (24 hour)
Inverter Control
Self Disgnosis
i-Save
LCD Display Remote Controller
Emergency Circuit Protection

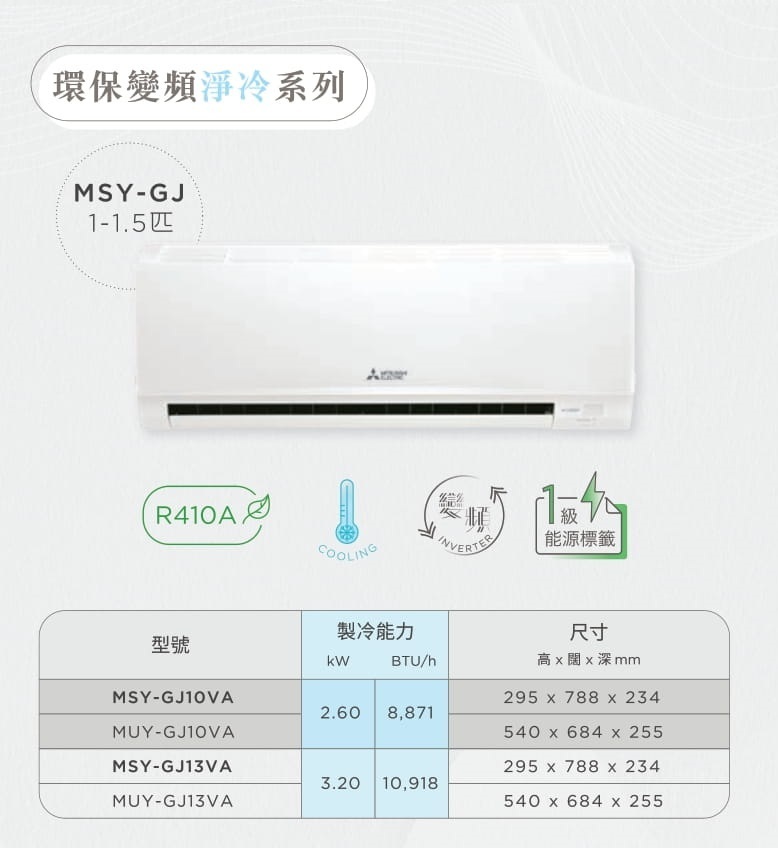

Model Indoor Unit MSY-GJ13VA
Outdoor Unit MUY-GJ13VA
Operation Mode Cooling
Cooling / Heating Capacity Rated kW 3.20
BTU/h 10,918
Min-Max kW 1.10-3.70
BTU/h 3,753-12,624
Power Consumption Rated kW 1.03
Min-Max -
Operating Current A 5.20
Air Circulation m³/min. 10.50
C.O.P. 3.11
Dehumidifying Capacity I/h 1.20
Noise Level Indoor Unit (Si)/Lo-Hi dB(A) 23-36
Outdoor Unit 48
Dimension (H x W x D)
Indoor Unit mm 295 x 788 x 234
Outdoor Unit 540 x 684 x 255
Weight Indoor Unit kg 9
Outdoor Unit 24
Refrigerant Pipe Diameter Liquid / Gas mm Ø6.35 / Ø9.52
Max. Piping Dimension Height Difference / Length m 12 / 20
Voltage V 220
Phase / Frequency Single / 50Hz
Refrigerant R410A
Energy Efficiency Grade 1
Remarks
The product specifications are provided by factories of Mitsubishi Electric.
Before purchase and installation, the space and position needed for installation should be confirmed by qualified engineers.
Designs and specifications are subject to change without prior notice.
