Economical & Energy Efficiency
Pollution Free
The GPN water heater produces no gas pollutants during the water heating process. Its operation is absolutely free of toxic substances and colour.
Energy Saving

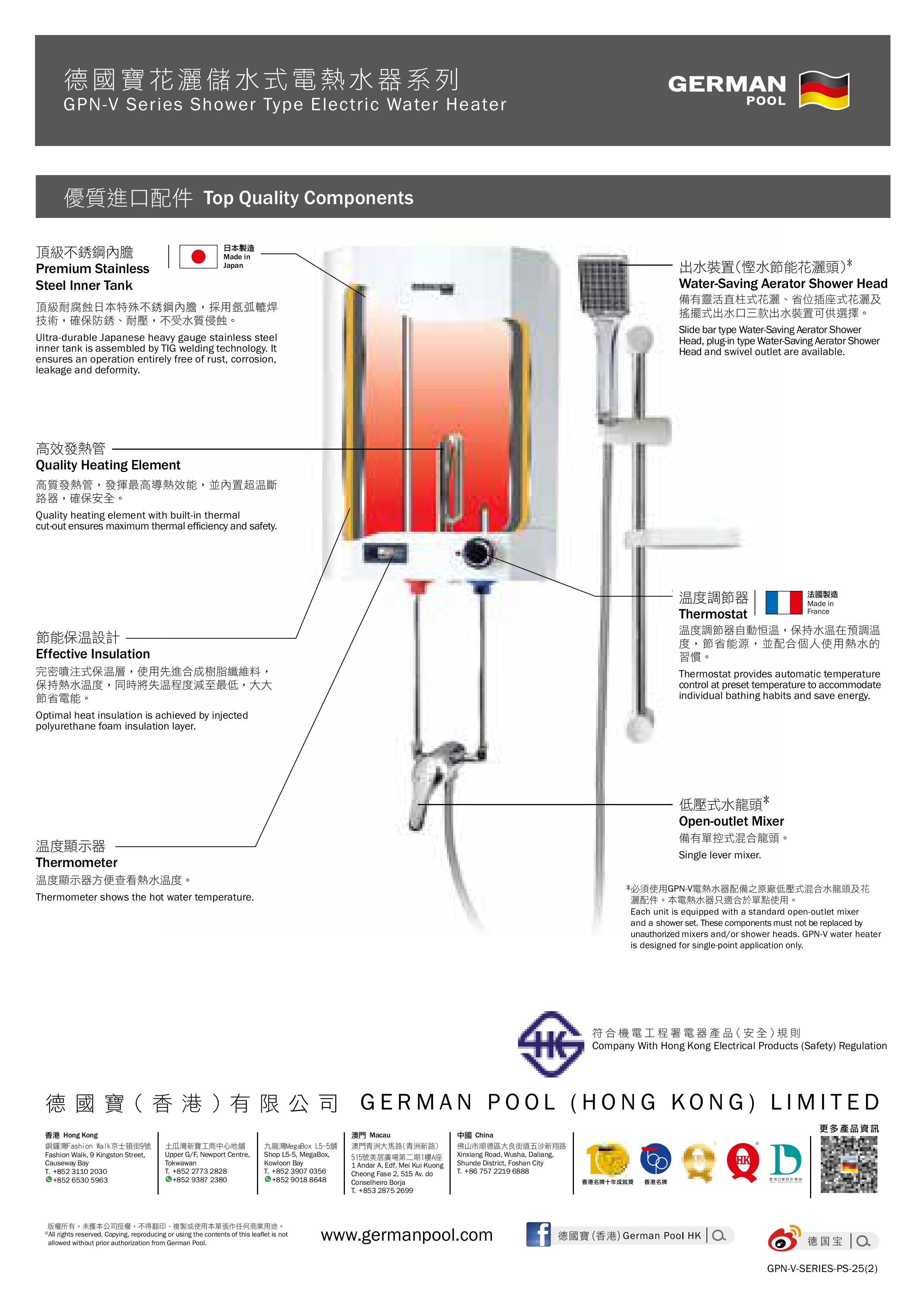

The injected polyurethane foam provides maximum insulation to the water tank. Also, GPN water heaters are compliant to the “1st Class Energy Efficiency Label”.
Safe & Reliable
To prevent electricity leakage, the water heater comes with an earthing system and all electrical parts are insulated. The drip-proof and splash-proof design also ensure safety.
Information

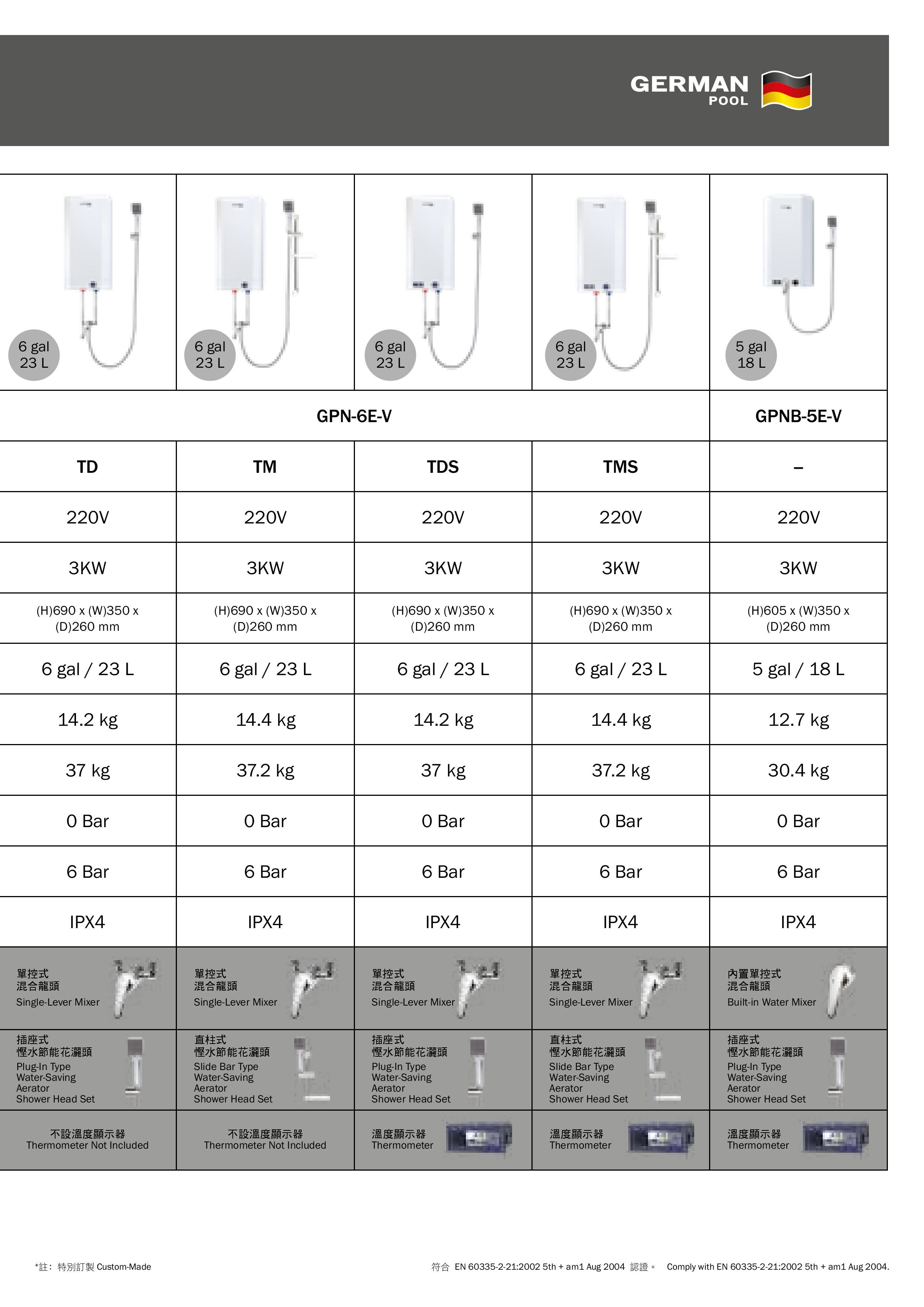

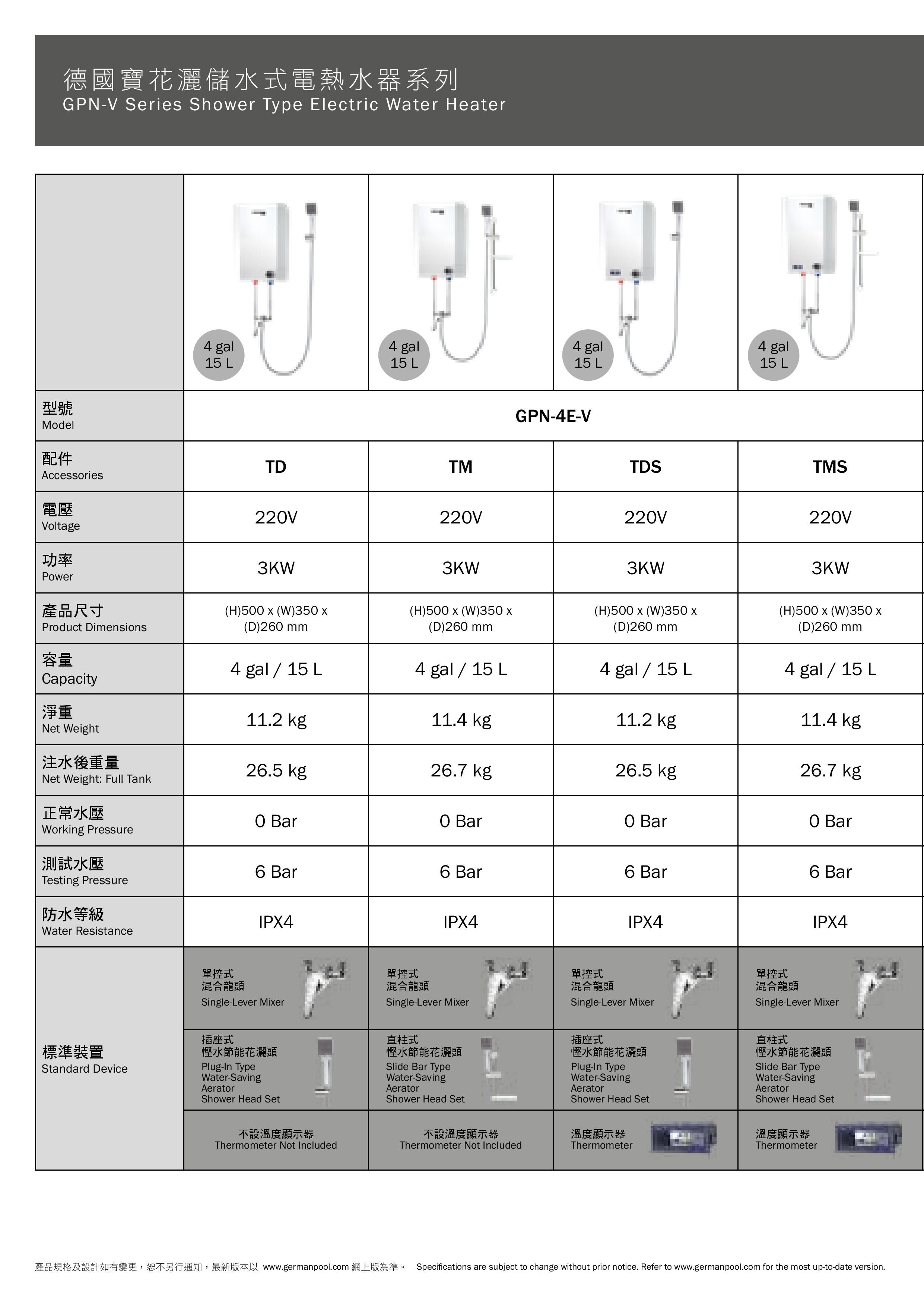

Model / Sub-ModelGPN-6E | GPN-4E
Water Storage Capacity6E: 6 gal / 23 L
4E: 4 gal / 15 L
Voltage220 V
Power (Max)3 kW / 4 kW^
Power Supply1 Phase
Electric Current13.6 A (3kW) / 18.2 A (4kW)
ColourWhite
Dimensions6E: (H) 680 (W) 330 (D) 245
4E: (H) 500 (W) 330 (D) 245
(in mm)
Packing Dimensions6E: (H) 275 (W) 790 (D) 380
4E: (H) 275 (W) 610 (D) 380
(in mm)
Net Weight6E: 13.2 kg
4E: 10.2 kg
Gross Weight With Packing6E: 14.9 kg
4E: 11.7 kg
Net Weight: Full Tank6E: 25.5 kg
4E: 36 kg
Functions & Features
Working Pressure0 Bar / 0 MPa
Testing Pressure5 Bar / 500 kPa

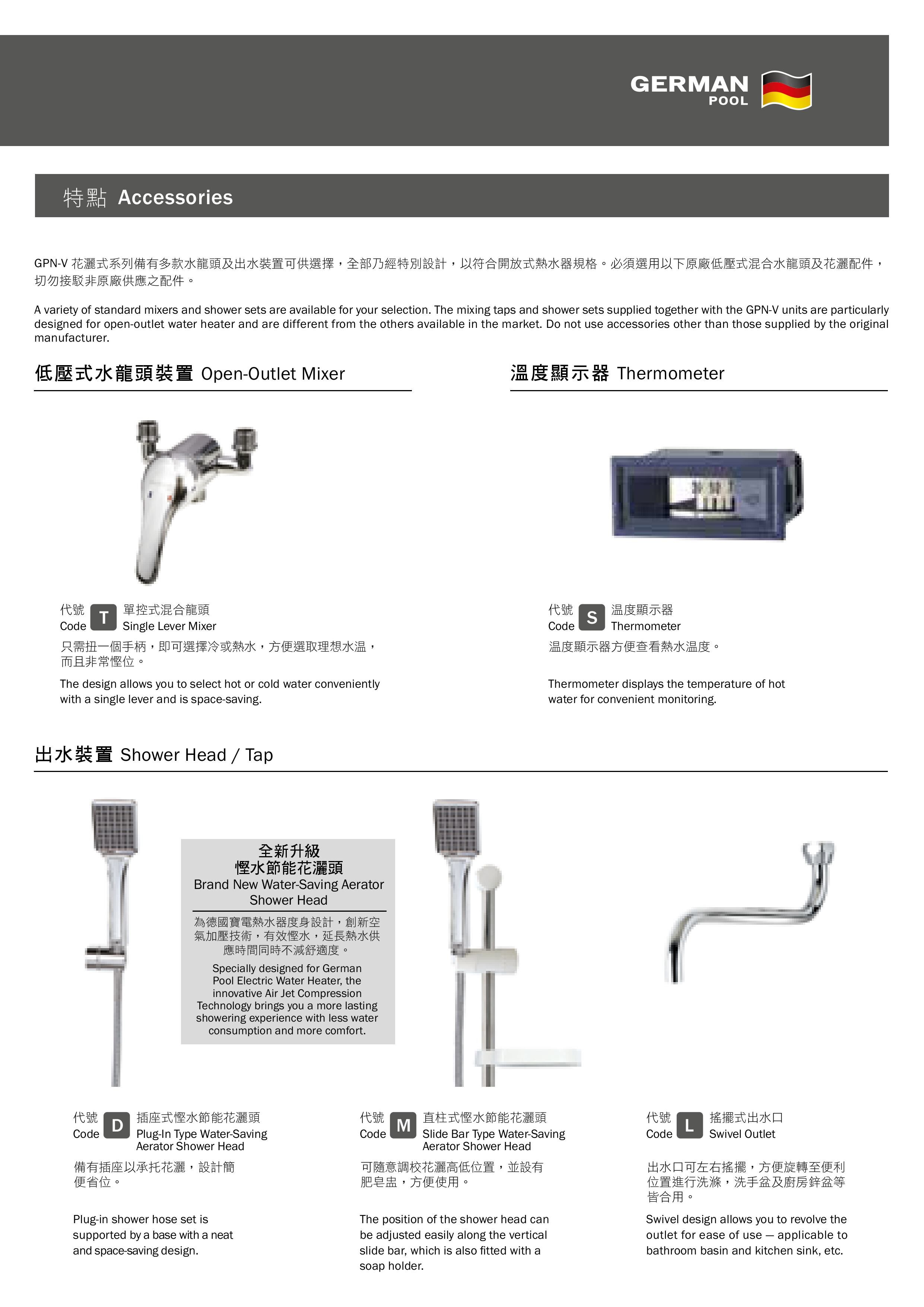

Accessory: Type of Mixer#Single Lever (T)
Accessory: Type of OutletWater & Energy Saving Aerated Shower Head
(Plug-in or Slide-bar Shower Holder)
Accessory: ThermometerOptional
Water ResistanceIPX4
Energy Label Reference NumberE190002, E190003
Others
Energy Efficiency ClassClass 1
Certification / StandardEN 60335-2-21:2002 5th + am1 Aug 2004
Warranty Term1 Year
Inner Tank 10 Years *
* The inner tank warranty only applies to the replacement of inner tanks of rapid fast flow water heaters. Additional service charges on testing, transportation and labour may apply.
^ Custom-Made
#Each unit is equipped with a standard open-outlet mixer and a shower set. Such components must not be replaced by unauthorized mixers and/or shower heads.
Specifications are subject to change without prior notice. Please refer to the Instruction Manual for Warranty Information.
