Through the stylish LCD display and control panel, precise temperature can be selected with operating information combined at a glance. By detecting the incoming temperature and flow rate from the water inlet, it can sustain a stable temperature through precise calaulation of energy required. It can cope with varient flow rate, yet maintaing a comfort showering experience. The DEL Plus series comes with a temperature indication light to ensure safety. It also fulfill the IP25 hoseproof standard which allows the unit to be installed within the showering area, definitely a combination of safety and reliability.
Through the stylish LCD display and control panel, precise temperature can be selected with operating information combined at a glance. By detecting the incoming temperature and flow rate from the water inlet, it can sustain a stable temperature through precise calaulation of energy required. It can cope with varient flow rate, yet maintaing a comfort showering experience. The DEL Plus series comes with a temperature indication light to ensure safety. It also fulfill the IP25 hoseproof standard which allows the unit to be installed within the showering area, definitely a combination of safety and reliability.
Feature:
‧LCD temperature display
‧Child-proof system with temperature setting 43℃/50℃/55℃/60℃
‧Precise temperature selection from 20℃-60℃
‧Saves up to 30 % energy compared to cylinder systems*
‧Profit-Rapid@ for a quick installation
‧For hard and soft water
More Functions:
18/ 21/ 24kW (Selectable rate power) and 27kW
5.2 – 13.8 l/min (depend on model)
Fully Electronic Control maintaining stabilized water supply without temperature fluctuation.
Assure accurate delivery of hot water in required temperature
from 20℃-60℃
Adjust temperature from 35℃ or 43℃ within 0.5℃ scale
Electronic safety system with air detection
Provide high efficency heating by using Bare wire heating system with pressure-tested copper casing
Min. Flow rate : 2.5 l/min
Hoseproof to IP25
Wireless comfort remote control (option)
*Compared hydraulic instantaneous water heaters; subject to pattern of use.

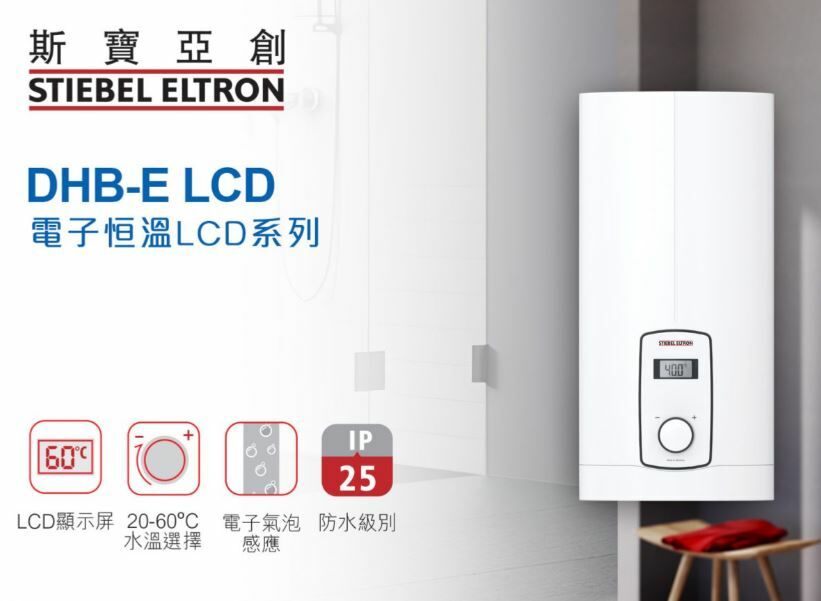

Model: DHB-E 18/21/24 LCD
Power rating: (400V)kW: 18/ 21/ 24 (380V)kW: 16.2/ 19/ 21.7
Size (H/W/D): 466 x 225 x 116mm
Temperature range: OFF, 20℃-60℃
Working pressure: 10 Bar
Starting volume: ≧2.5L
Protection leve:l IP25
Inlet size: 15mm(G1/2″)
Weight: 3.2kg
Control unit: Electronic Control
Unit Type: Centralized
LCD display
Childproof setting 43℃/50℃/55℃/60℃
Bare wire heating system
Elect. air detetion system
Elect. safety system with temp. cut-off device
Elect. Flow rate control
Solar operation (preheated water)
Remote Control (optional) FFB 4
Made in Germany
The photos and product shots are for reference only.
Specification and details are subjected to change without prior notice.
