Description
*Premium silent rotor
*Anion air purification system
*LCD-display remote control
*Easy-cleaning anti-dust filter
*Streamlined waterproof body
*Window and wall mount installation
*2 heating speed levels, versatile and eco-friendly
Multifunctional Remote Control with Magnetic Holder
Large LCD display allows easy monitoring and control, along with a wall-mounted magnetic holder.

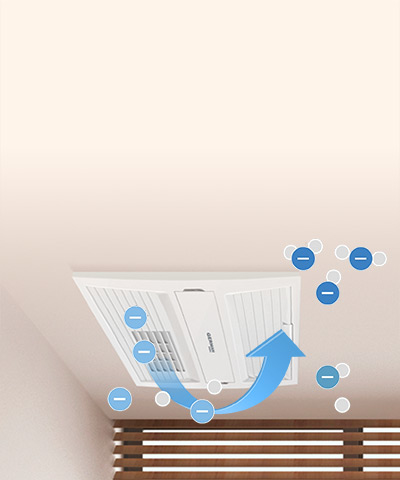

Anion Function
Anion technology makes the air much fresher and cleaner.
Adjustable Louvers
Premium silent rotor and Adjustable Louvers

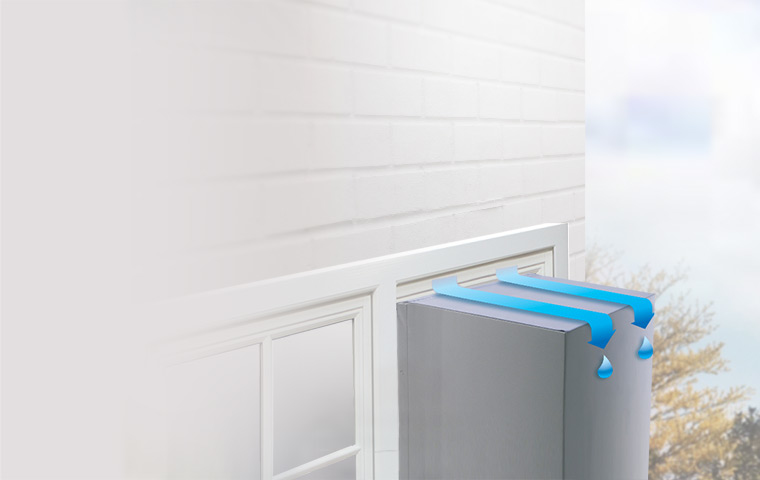

Waterproof Shell
Sealed waterproof shell with anti-water stagnation and anti-rust design, making the bathroom more clean and hygienic.
All-in-1 Functions
Warm Air Circulation
The Heat mode warms up a bathroom in an instant, then circulates warm air to keep a constant temperature, giving a comfortable bathing experience.
Laundry Drying
With a closed door and the Heat mode on, it takes only 2 hours to dry 3.5 kg of soggy laundry. The best yet? Power consumption only costs less than $4!
Ventilating
Turn on the Heat mode to evaporate the trouble-causing damp. Then, turn on the Vent mode to extract the stale evaporated air.
Steam and Stale Air Extraction
Use the Vent mode to extract all the steam and stale air in the bathroom for a pleasant bathing experience.
Fan Cooling
Beat the soaring mercury with the Fan mode, which circulates fresh air to cool the stifling indoors.
Three Flexible Installation Options

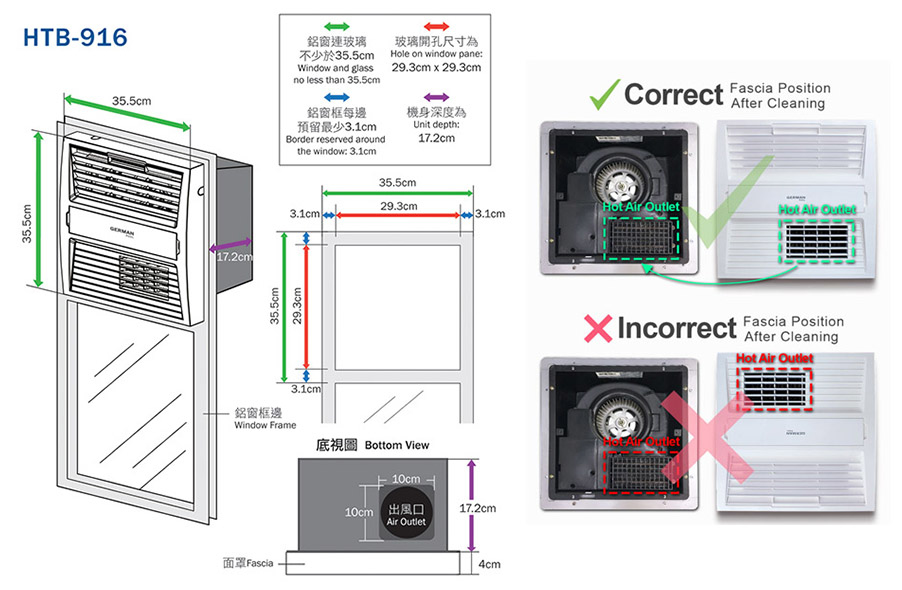

Window Mounting
Reserve a 293mm x 293mm hole on the window pane
Push the bathroom heater inside the hole, secure with screws and glass glue
Fix the remote control holder on a wall

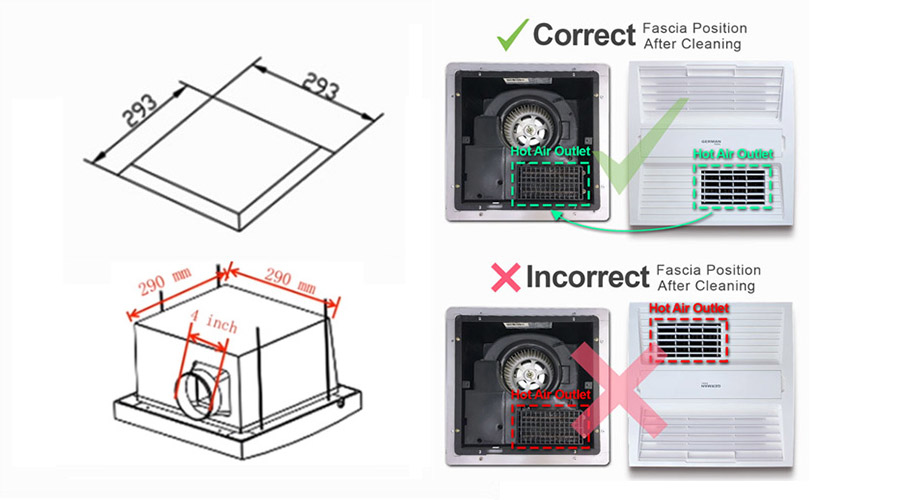

Ceiling Mounting
Reserve a 293mm x 293mm on the ceiling
Use long bolts to secure the bathroom heater on the ceiling
Connect the ventilation duct and direct it outdoors
Fix the remote control holder on a wall

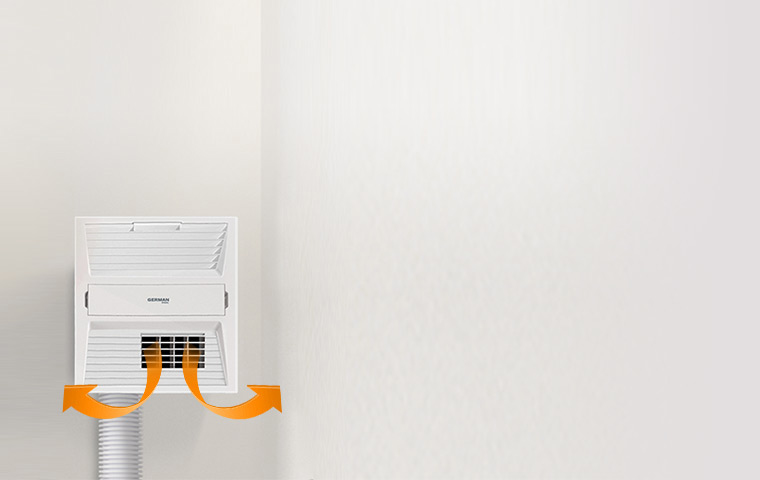

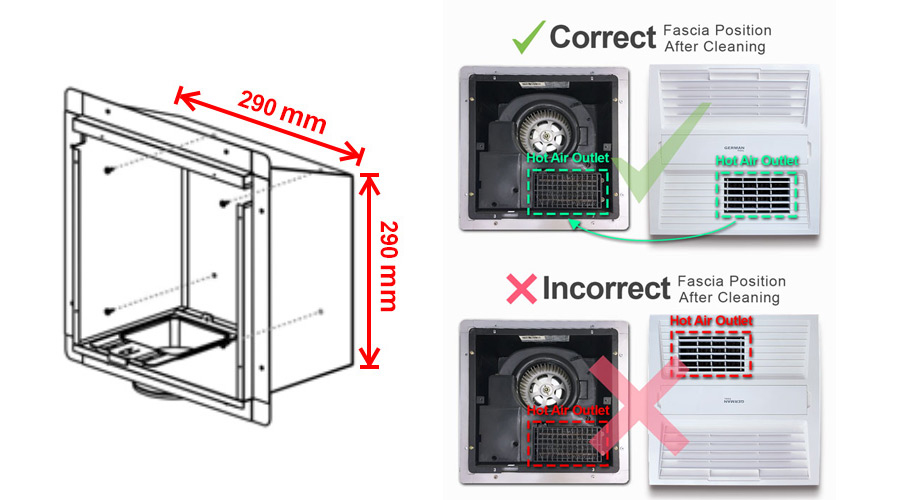

Wall Mounting
Mount the bathroom heater at a desired height on the wall with the air outlet facing downward
Secure the heater on the wall
Connect the ventilation duct and direct it outdoor
Fix the remote control holder on a wall
Information
Model / Sub-ModelHTB-916W | HTB-916S
Voltage220 V
Power (Max)1,630 W
ColourWhite | Silver
Min. Installation DimensionsWindow: (H) 293 X (W) 293 mm
Ceiling: (H) 293 X (W) 293 mm
Depth/Space ReservationWindow: mm
Ceiling: 185 mm
Wall: 185 mm
Min. Installation Requirements (with Waterproof Shell)(H) 293 (W) 293 mm
Dimensions(H) 267 (W) 267 (D) 180 mm
Packing Dimensions(H) 430 (W) 500 (D) 275 mm
Net Weight4.2 kg
Net Weight With Waterproof Shell6 kg
Gross Weight With Packing7 kg
Functions & Features
Heating SystemPTC Ceramic Heating
VDE Approval / ClassIPX2
Heating Coverage AreaApprox. 10 m² / Height 2.4 m
Laundry Drying Capacity *60 mins (Thin Clothing), 120 mins (Thick Clothing)
Others
Warranty Term2-Year (All Parts) **
* 90 cm distance, 10 m² area; the drying time for laundry may vary due to the following factors: bathroom size, indoor and outdoor temperature, humidity, clothing material, quantity and level of wetness etc.
** Product purchased on or after 1 Dec 2015 will receive a 2-year warranty on all parts (except plastic parts) and free service on testing, labour transportation and installation (remote-area surcharge and scaffolding-related costs are not included).
Specifications are subject to change without prior notice. Please refer to the Instruction Manual for Warranty Information.
