Economical & Energy Efficiency
Pollution Free
The GPN water heater produces no gas pollutants during the water heating process. Its operation is absolutely free of toxic substances and colour.
Energy Saving
The injected polyurethane foam provides maximum insulation to the water tank. Also, GPN water heaters are compliant to the “1st Class Energy Efficiency Label”.
Safe & Reliable
To prevent electricity leakage, the water heater comes with an earthing system and all electrical parts are insulated. The drip-proof and splash-proof design also ensure safety.
Shower Type Water Heater
Specifications
Information
Sub ModelGPN-4E-V | GPN-6E-V
Voltage220 V
Power3 kW
Power Supply1 Phase
Electric Current15A
Capacity: Water Storage4 gal (15 L) | 6 gal (23 L)
ColourWhite
Dimensions(4 gal) (H) 500 (W) 350 (D) 260 mm
(6 gal) (H) 690 (W) 350 (D) 260 mm
Packing Dimensions(4 gal) (H) 330 (W) 670 (D) 425 mm
(6 gal) (H) 330 (W) 860 (D) 425 mm
Net Weight(4 gal) 11.2 kg
(6 gal) 14.2 kg
Gross Weight with Packing(4 gal) 12.8 kg
(6 gal) 16.0 kg
Net Weight: Full Tank(4 gal) 26.5 kg
(6 gal) 37.0 kg
Functions & Features
Working Pressure0 Bar / 0 MPa
Testing Pressure0.6 MPa
Type of MixerSingle Lever (T)

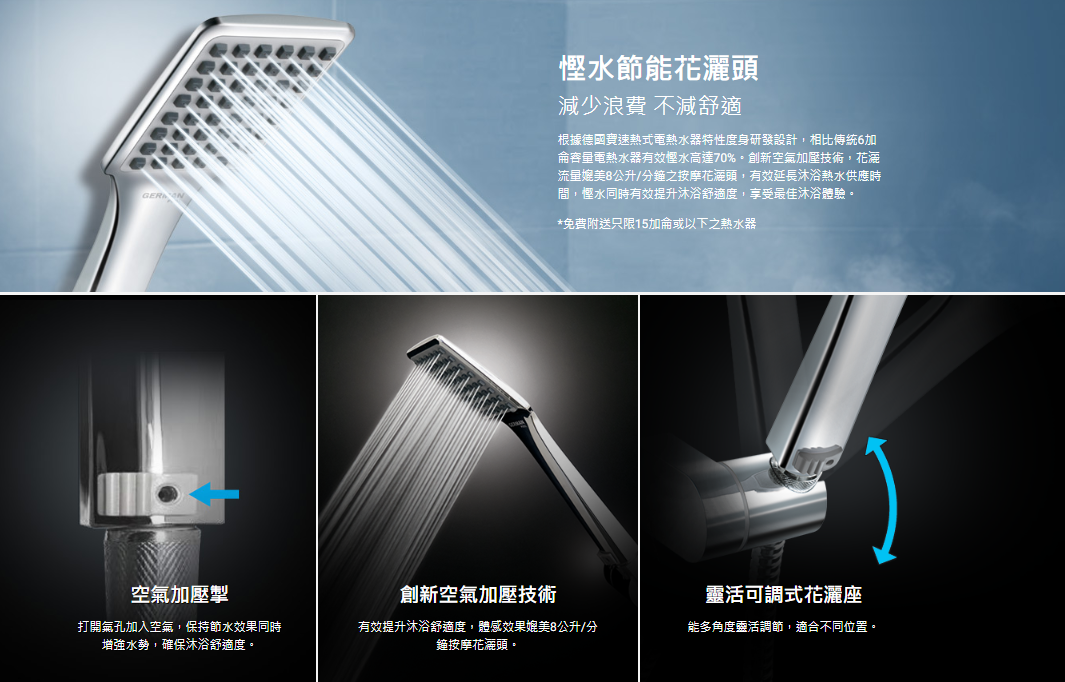

Type of OutletWater & Energy Saving Aerated Showerhead
Others
Energy Efficiency ClassGrade 1 (2025)
Certification / StandardIEC 60335-1、IEC60335-2-21
Warranty Term1-Year Warranty (Whole Unit)

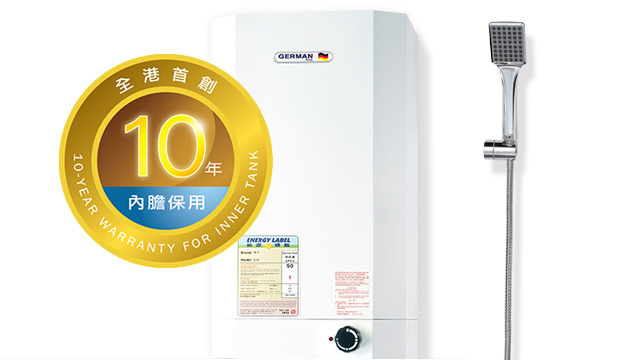

Warranty Term (Additional)Inner Tank 10 Years*
Remarks
*The inner tank warranty only applies to the replacement of inner tanks of storage water heaters. Additional service charges on testing, transportation and labour may apply.
