Unlocking method: Face Recognition (for EL600F) / Fingerprint / Combination / Smart Card / Mechanical Key

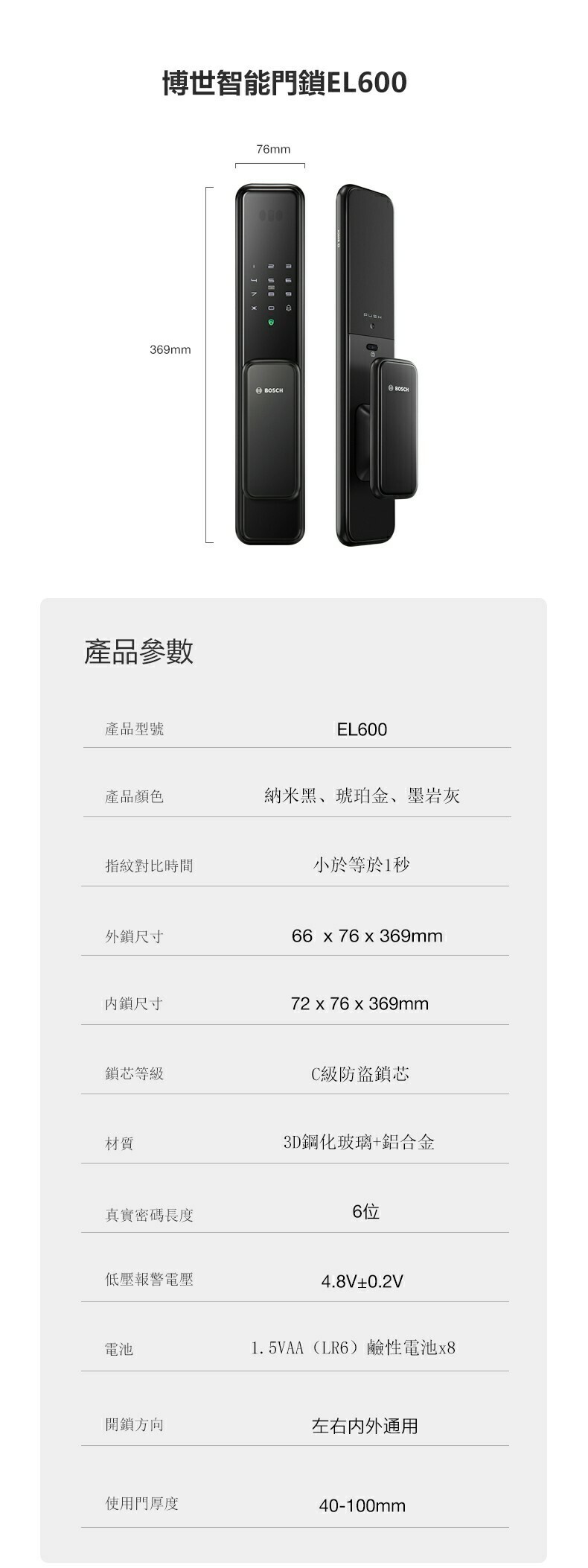

Dimensions:
Outside Door Panel 69(D)x77(w)x395(H)mm Including Door Handle
Inside Door Panel 72(D)x77(w)x395(H)mm incl. Door Handle
Face Recognition: 3D Face Recognition Sensor (for EL600F)

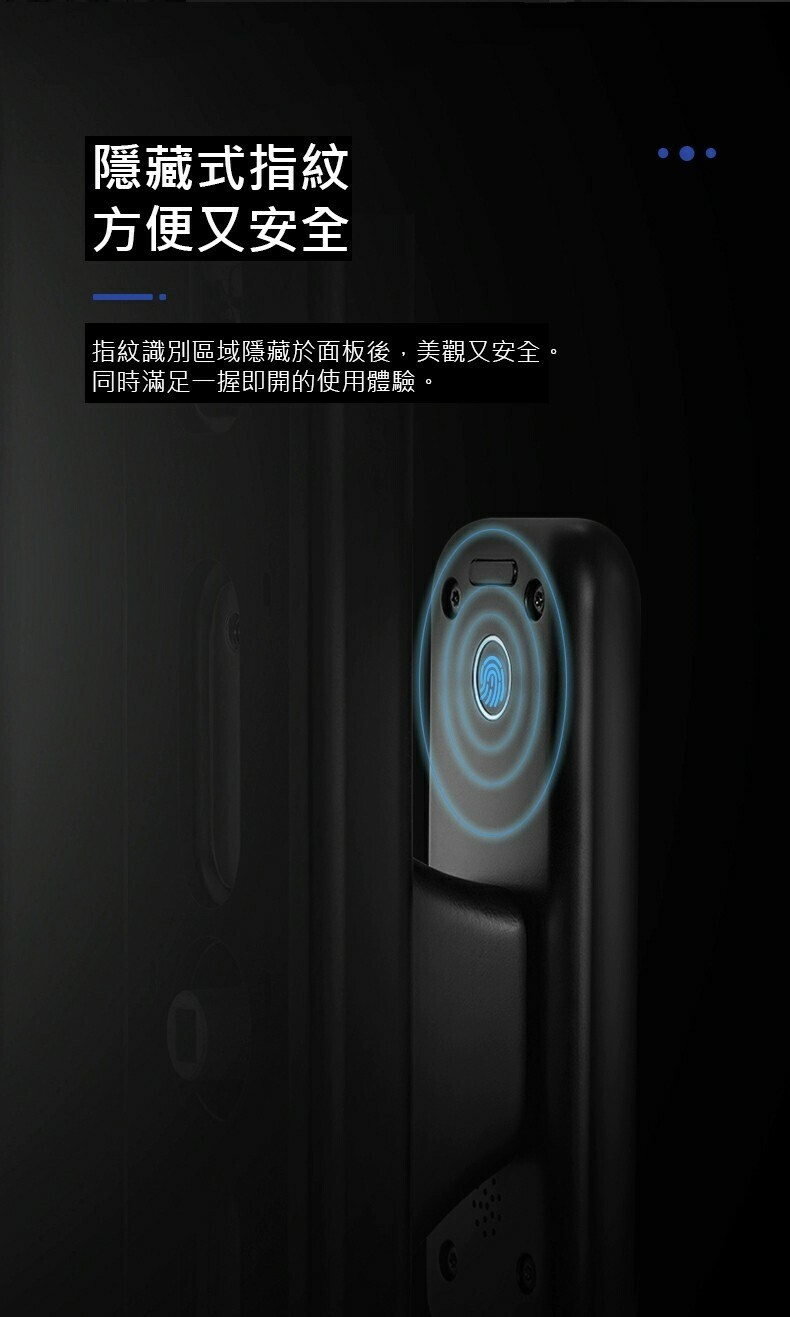

Fingerprint Sensor: Hidden Semiconductor Fingerprint Sensor

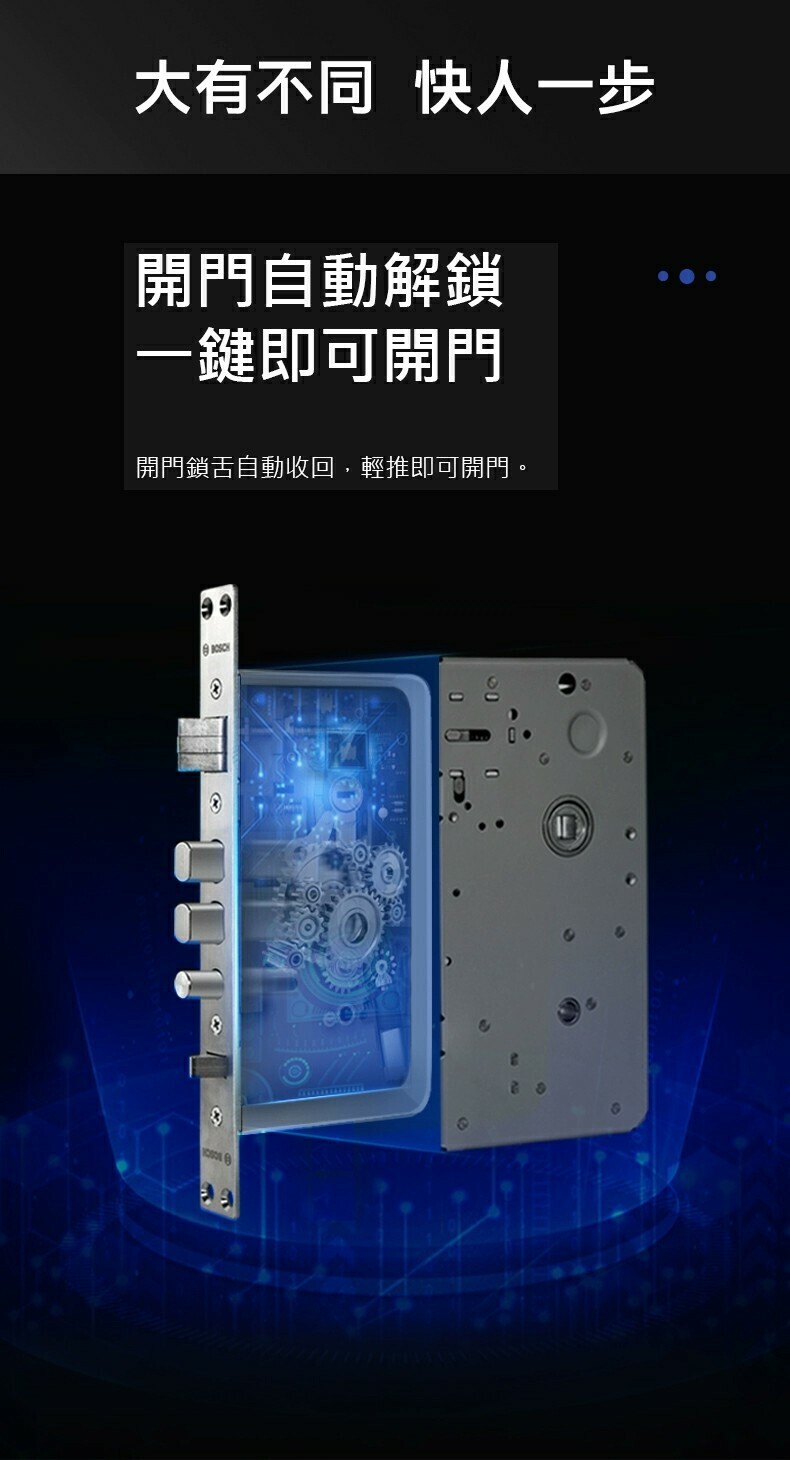

Lock body: 70mm lock fully automatic
Smart card: RF card 2 pcs.
Operating Temperature: -10℃-+55
Cylinder: Leaf C grade (GA73), 2 keys
Power supply: 8*AA alkaline battery, USB-C
Relative Humidity: 0~93% RH (non-condensing)

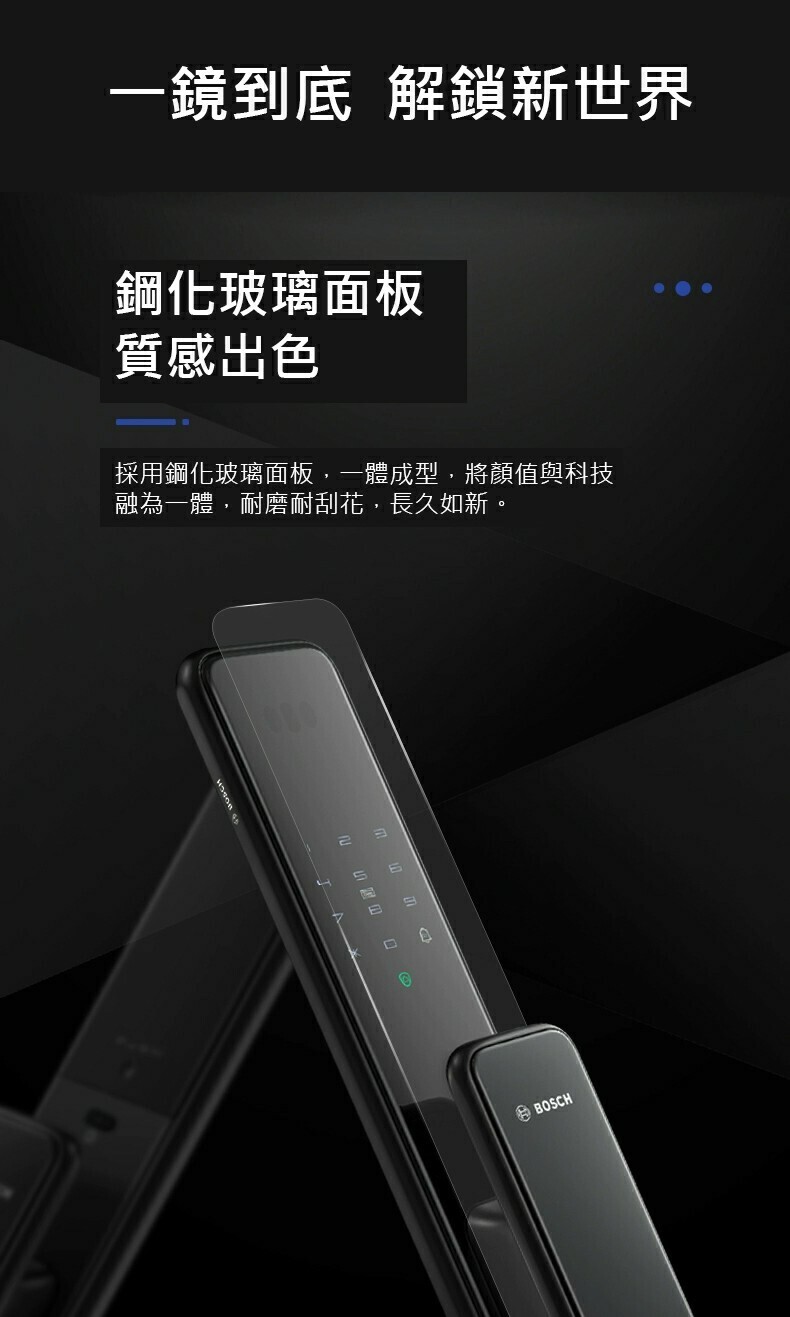

Material: Aluminum Housing, IML Panel (EL600) / 3D Tempered Glass, Aluminum Housing (EL600F)
Handle Type: Fixed push-pull handle
Door thickness: 40~100mm
Door Opening Direction: Left/Right Inside/Outside
Main Functions:
Face recognition, automatic detection can be set to unlock the door when the user approaches the door lock (EL600F applicable)

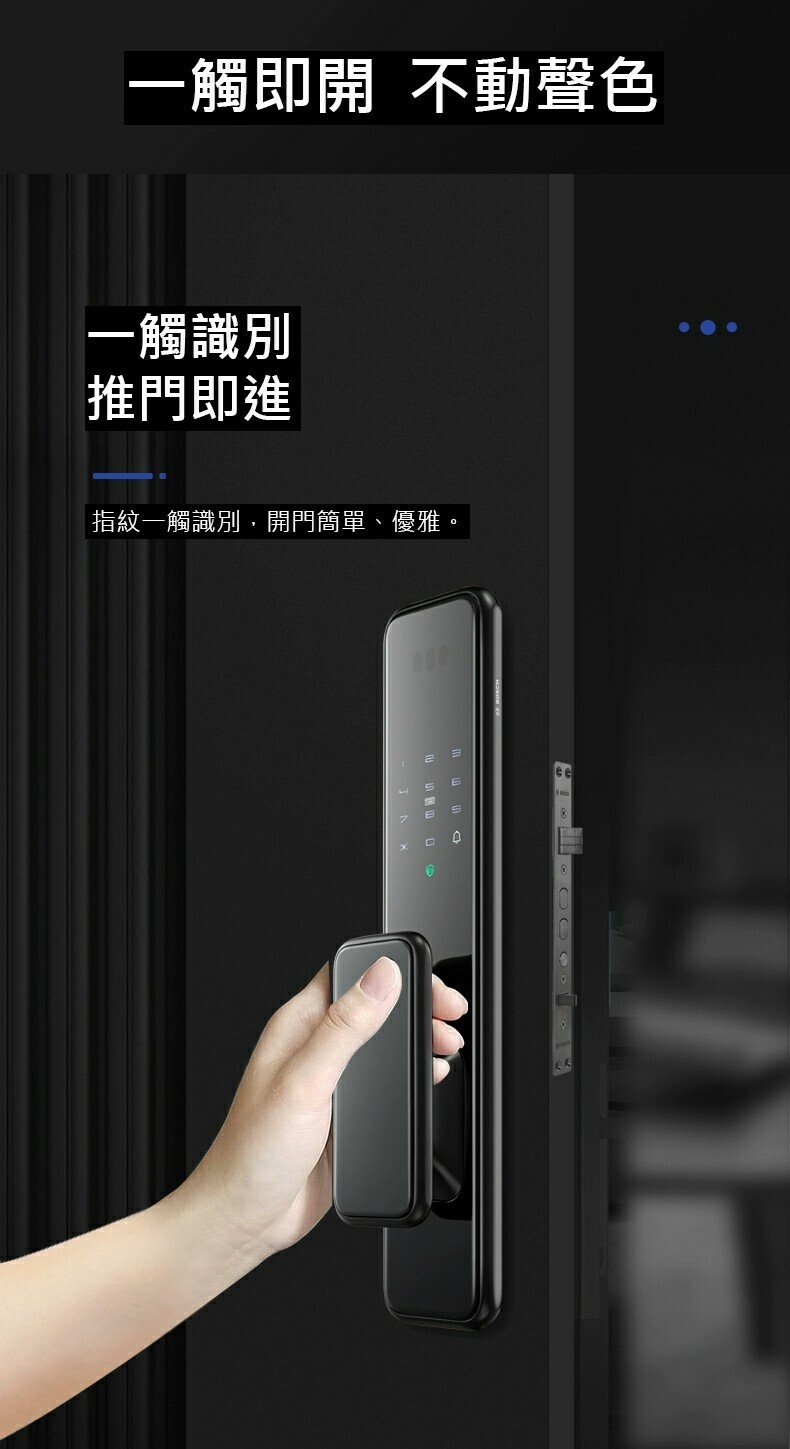

Hidden fingerprint sensor combined with the handle of the integrated design, a grip can be unlocked, a perfect combination of ergonomics.
Support virtual password, input 10 digits at the front and back, and input 6-8 digits in the middle to unlock the door.
Support outdoor dual authentication: two combinations of system settings (face (for EL600F)/fingerprint/password/card).
One-touch unlocking inside the door
Built-in doorbell
Indoor child lock support
Outdoor emergency power supply USB-C
